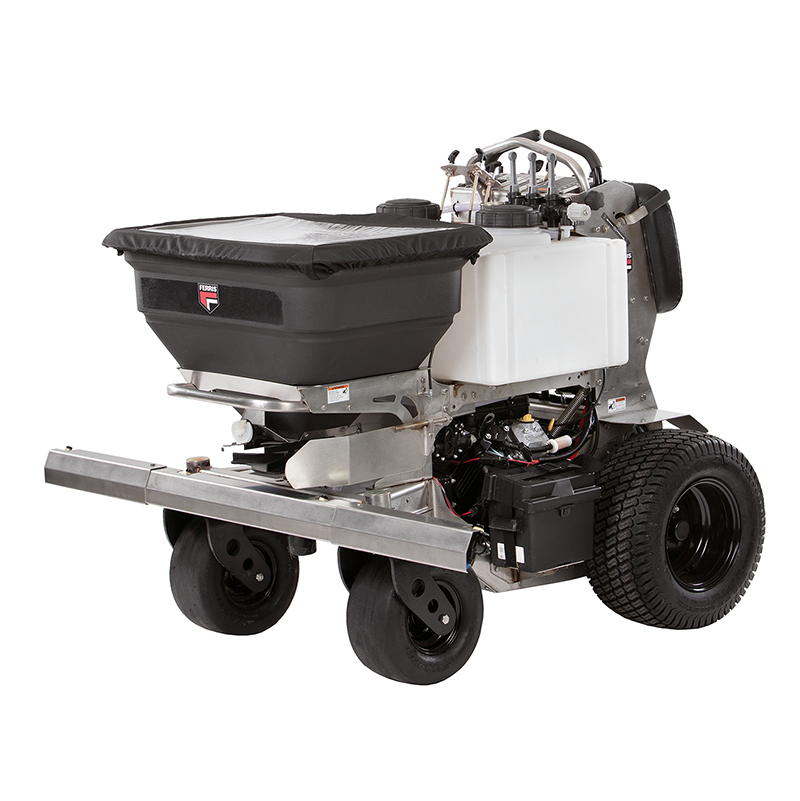

Venture XC™ FS3200 Ride-On Spreader/Sprayer

DRY COVERAGE OVER ONE ACRE AND MAXIMUM LIQUID COVERAGE OF 2.2 ACRES

Big jobs require more capacity. The Venture™ FS3200 zero turn ride-on spreader/sprayer has a 200-pound granular hopper and dual liquid spray tanks which means less time refilling. Like the Venture, it has a variable spray system for a variety of applications and a steel frame to resist corrosive chemicals for added life.

Features

200 lbs. Spyker Hopper

The Venture XC™ FS3200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.

24 Gallons of Liquid Capacity

Covers a maximum of 2.2 acres between fill-ups.

3-Section Breakaway Boom

The 3-section breakaway boom allows the Venture XC™ FS3200 to access narrow areas and take up less space on a trailer. Spray width is variable at 2’, 4’, 6’, or 8’ widths.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

Zero Turn Maneuverability

Maneuver in tight areas with zero turn functionality provided by HydroGear® transaxles.

Spray Wand

A spray wand with a 25’ coil hose comes standard. This allows the operator to provide spot treatment for sidewalks, driveways, or gardens.

Commercial Power

Vanguard 18 gross hp* V-twin engine provides commercial strength power.

Specifications

Engine Model

5901755

US MSRP ^

CAN MSRP ^

Fuel Capacity - gal (L)

5 (19)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Top Ground Speed (mph)

Front Tires

13" x 6.5 - 6

Rear Tires

20" x 10 - 12

Spreader Model

Spyker 220 Series

Spreader Hopper Capacity (lbs.)

200

Electric Spreader Motor

Standard

Variable Spread Width

3' to 25'

Spray Pump

4.0 gpm electric diaphragm pump

Sprayer Tank Capacity - gal (L)

24.0 (90.8)

Nozzles

4 - TT11003-VP

Spray Rate

1/4 gallon per 1,000 ft² at 20 psi

Productivity (sq. ft. per fill)

96,000 (1/4 gallon per 1,000 ft² at 20 psi at 5 mph)

Overall Length - in. (cm)

65 (165)

Overall Width - in. (cm)

39 (99.1)

Overall Height - in. (cm)

48 (121.9)

Dry Weight - lbs (kg)

627 (284.4)

Full Weight - lbs (kg)

939 (425.9)

Accessories Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

Engine Brand

Vanguard® V-Twin

Legacy Material Number

5901755

Operator's Manuals

Operator's Manual - English
Download Icon

Illustrated Parts List - English
Download Icon

Wiring Diagram Schematic - English

^{* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
^ Suggested prices will vary by market. Price shown in US dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}

Attachments

SALT SPREADER BAFFLE

Allows the Venture XC™ FS3200 to spread salt to extend seasonal use. Not to be used with rock salt.

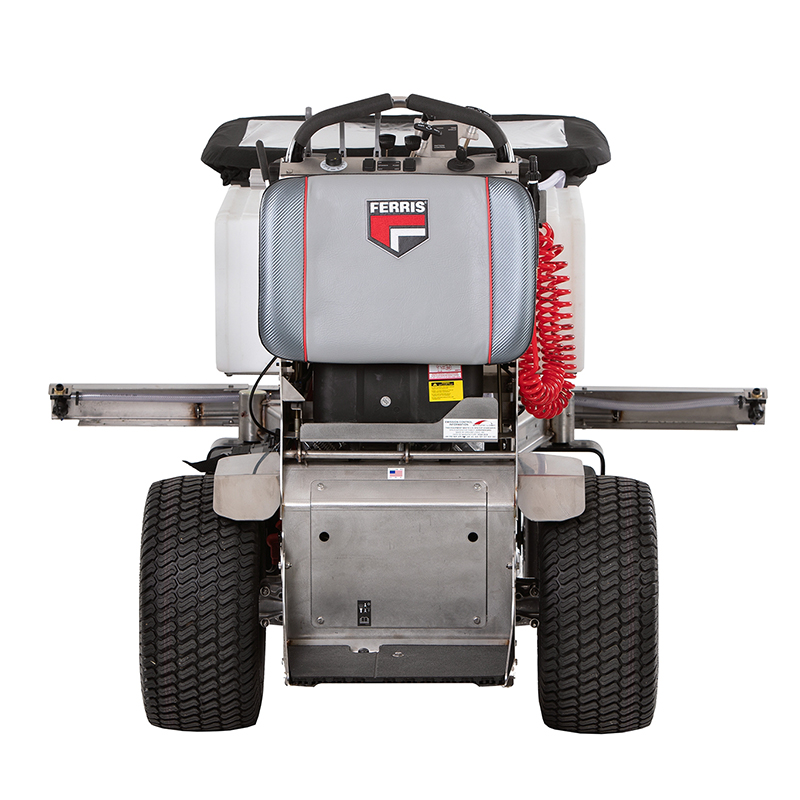

Venture XC™ FS3200 Ride-On Zero Turn Spreader/Sprayer
