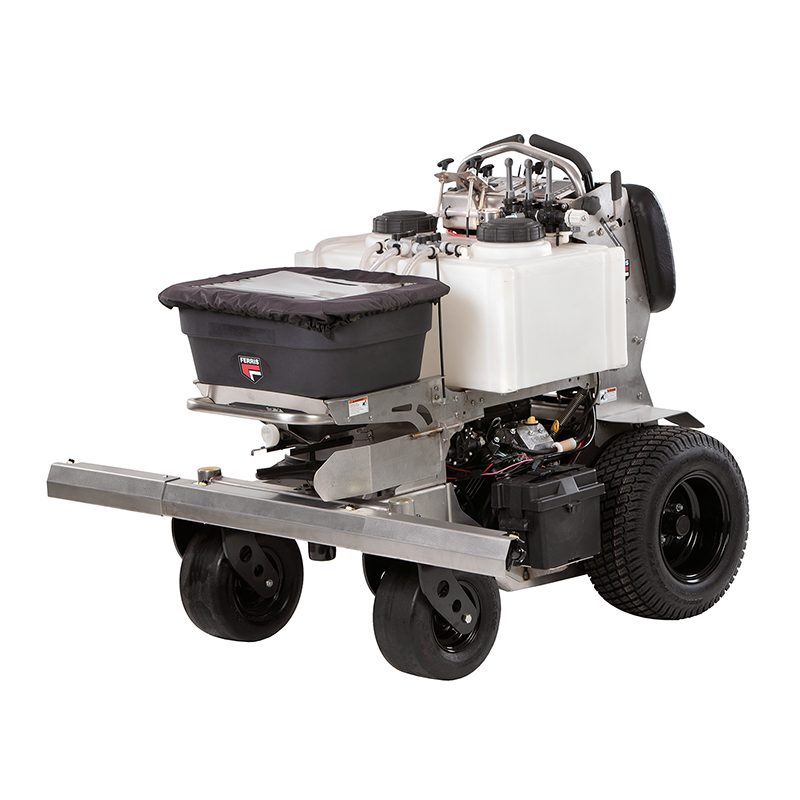

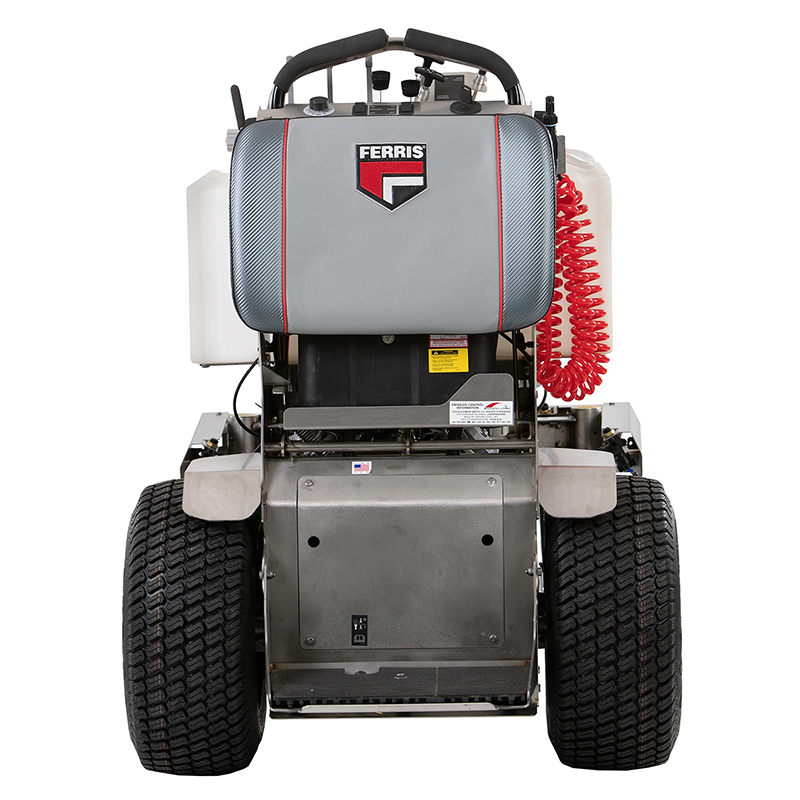

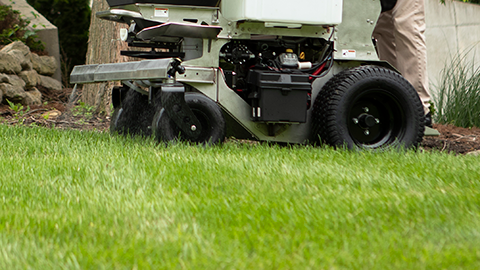

Venture™ FS3100 Ride-On Spreader/Sprayer

DRY COVERAGE OVER HALF ACRE AND MAXIMUM LIQUID COVERAGE OF 2.2 ACRES

You can't beat the efficiency of a zero turn ride-on sprayer/spreader. The Venture™ FS3100 has a variable spray system with four spray widths plus a spray wand ideal for a variety of applications. Dual liquid spray tanks provide up to 2.2 acres of coverage and a stainless steel frame resists corrosive chemicals for added life.

Features

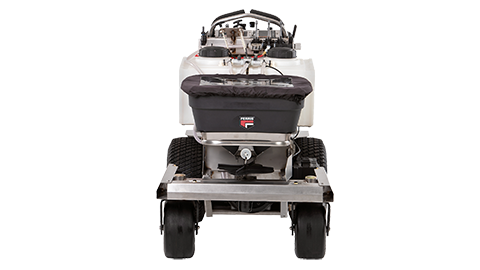

100 lbs. Spyker Hopper

The Venture™ FS3100 hopper will handle up to 100 lbs. of granular material providing over half acre of maximum coverage.

24 Gallons of Liquid Capacity

Covers a maximum of 2.2 acres between fill-ups.

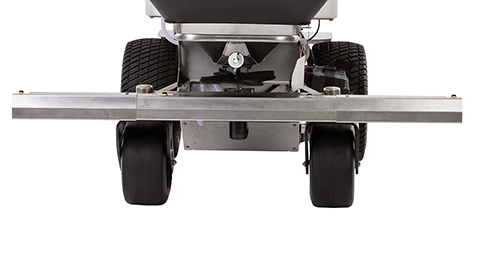

3-Section Breakaway Boom

The 3-section breakaway boom allows the Venture™ FS3100 to access narrow areas and take up less space on a trailer. Spray width is variable at 2’, 4’, 6’, or 8’ widths.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

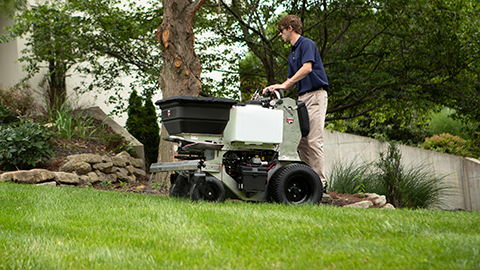

Zero Turn Maneuverability

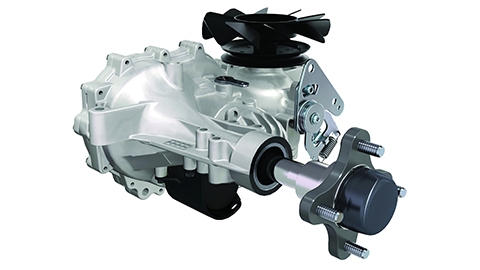

Maneuver in tight areas with zero turn functionality provided by HydroGear® transaxles.

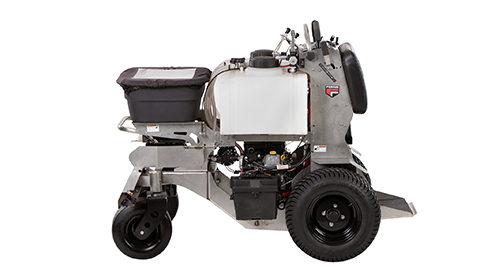

Compact Size

The Venture™ FS3100 fits easily through a 36” gate, providing access to residential areas and condominium common areas.

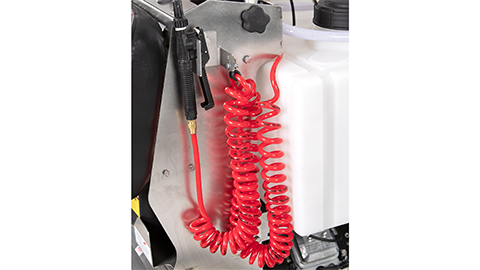

Spray Wand

A spray wand with a 25’ coil hose comes standard. This allows the operator to provide spot treatment for sidewalks, driveways, or gardens.

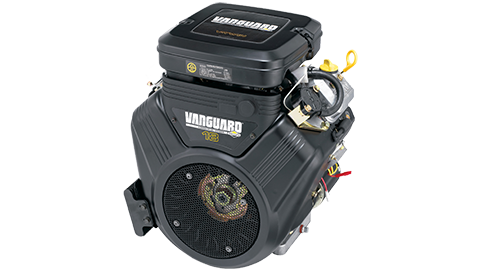

Commercial Power

Vanguard 18 gross hp* V-twin engine provides commercial strength power.

Specifications

Engine Model

5901754

US MSRP ^

$14,199.00

CAN MSRP ^

$19,199.00

Fuel Capacity - gal (L)

2.5 (9.5)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Top Ground Speed (mph)

Front Tires

13" x 6.5 - 6

Rear Tires

20" x 8 - 10

Spreader Model

Spyker 120 Series

Spreader Hopper Capacity (lbs.)

100

Electric Spreader Motor

Standard

Variable Spread Width

3' to 25'

Nozzles

4 - TT11003-VP

Spray Rate

1/4 gallon per 1,000 ft² at 20 psi

Productivity (sq. ft. per fill)

96,000 (1/4 gallon per 1,000 ft² at 20 psi at 5 mph)

Overall Length - in. (cm)

65 (165.1)

Overall Width - in. (cm)

36 (91.4)

Overall Height - in. (cm)

48 (121.9)

Dry Weight - lbs (kg)

617 (279.8)

Full Weight - lbs (kg)

929 (421.4)

Accessories Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

Engine Brand

Vanguard® V-Twin

Legacy Material Number

5901754

Operator's Manuals

Operator's Manual - English
Download Icon

Illustrated Parts List - English
Download Icon

Wiring Diagram Schematic - English

^{* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
^ Suggested prices will vary by market. Price shown in US dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}

Attachments

SALT SPREADER BAFFLE

Allows the Venture™ FS3100 to spread salt to extend seasonal use. Not to be used with rock salt.

Venture™ FS3100 Ride-On Zero Turn Spreader/Sprayer
