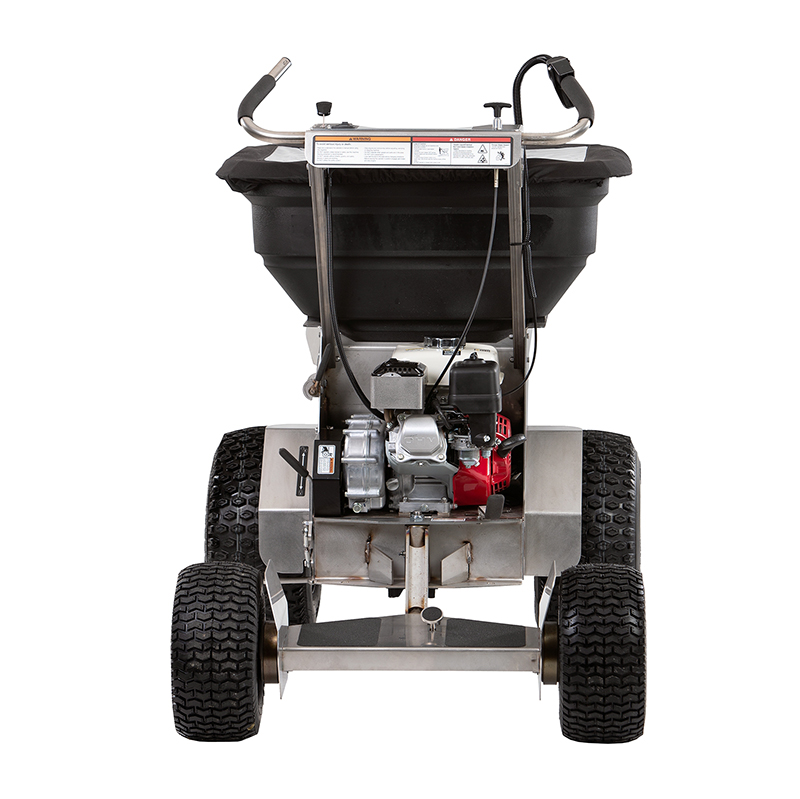

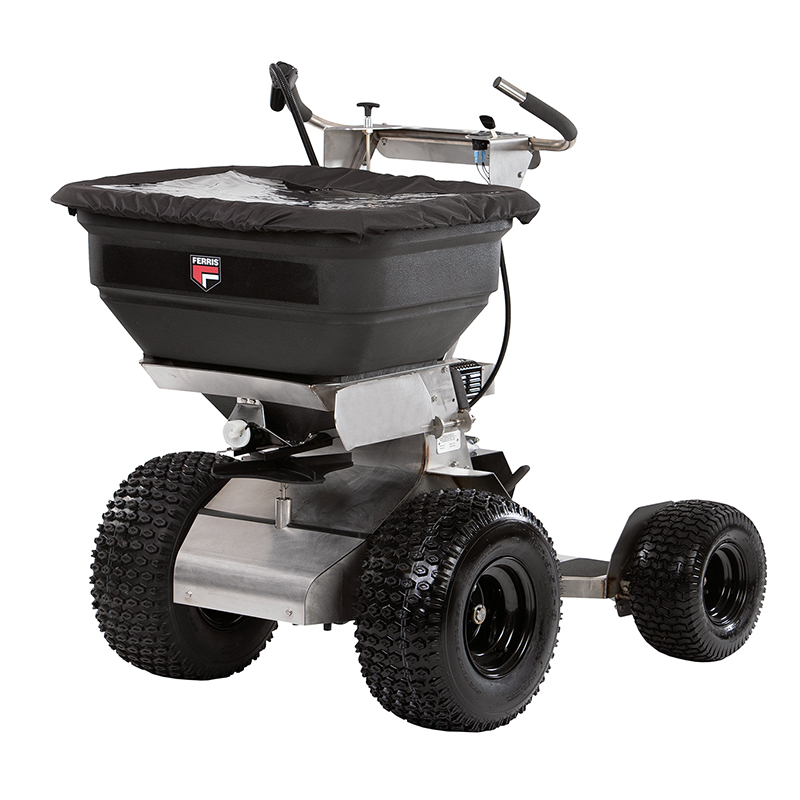

Rover XC™ FS1200 Ride-On Spreader

COVER OVER ONE ACRE BETWEEN FILL UPS

The Rover XC™ FS1200 is an upgraded and rugged ride-on spreader, perfect for applications that don't require a liquid application. The larger 200-pound granular capacity hopper enables to up 1.2 acres of treatment coverage, double that of the FS1100. A low center of gravity provides excellent performance on sloped terrain. A 100% stainless steel frame and coated Peerless transaxle resist corrosive granular chemicals for added life. Its narrow width of only 35.5" allows for easy access through gates for residential areas and condominium complexes.

Features

200 lbs. Spyker Hopper

The Rover FS1200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular chemicals distributed by the unit.

Best-in-Class Maneuverability

A low-friction sulky pivots on a 3/4" tapered roller bearing for smooth movement. No mechanical steering assistance is required.

Ergonomic Controls

Simple, well-placed controls with dry pattern and throttle on the right. Spreader gain and gate control are on the left.

Compact Size

The Rover XC^® FS1200 fits easily through a 36" gate, providing access to residential areas and condominium common areas.

Specifications

Model Number

5901751

US MSRP ^

$6,649.00

CAN MSRP ^

$8,199.00

Engine Model

FX160-URH2

RPM

Full Speed: 3750 RPM (No Load) Idle: 1400 RPM

Fuel Capacity - gal (L)

0.82 gal (3.1 L)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Fuel Shut-Off Valve

Located on engine

Transmission Model

Peerless 855 Series, coated for corrosion resistance

Speed (mph)

Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr)

Front Tires

18" x 9.5 - 8, RV antifreeze added for ballast and traction

Rear Tires

13" x 6.50 - 6

Spreader Model

Spyker 220 Series

Spreader Hopper Capacity (lbs.)

200

Overall Length - in. (cm)

54.0 (137)

Overall Width - in. (cm)

35.5 (90)

Overall Height - in. (cm)

49.0 (124)

Dry Weight - lbs (kg)

330 (150)

Full Weight - lbs (kg)

550 (249)

Safety Interlock

This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.

Accessories Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

Operator's Manuals

Illustrated Parts List - English
Download Icon

Operator's Manual - English
Download Icon

Wiring Diagram Schematic - English

^{^ Suggested prices will vary by market. Price shown in US dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}

Attachments

SALT SPREADER BAFFLE

Allows the Pathfinder™ XC FS2200 to spread salt to extend seasonal use. Not to be used with rock salt.

SPARE PARTS KIT

A convenient package of high-wear parts that allow for fast service and maintenance.
